FAST, EASY STRAW BEDDING,
EVERY TIME.
Straw Master Canadian-Made bale shredder/spreaders for skidsteers make quick work for livestock farmers who need to spread hay or straw inside the barn, at distances up to 50ft. At approximately 5ft wide, these bale shredder/spreaders can access tight spaces and get bedding into those awkward and tough to reach places.
Whether it’s square or round bales Straw Master is the simple and economical solution for mobile livestock feeding and bedding. Controlled via remote from the comfort of your cab, adjusting the 300° blower hood rotation has never been easier.
Straw Master’s gravity-fed bale shredder/spreaders are built using quality components and with fewer parts to maintain and offer an advantage over chain fed options. Simply connect your hydraulics and the 12V for the remote control, and you’re ready to get to work.
BALE SHREDDERS/SPREADERS
Front-Load Bale Shredder/Spreaders

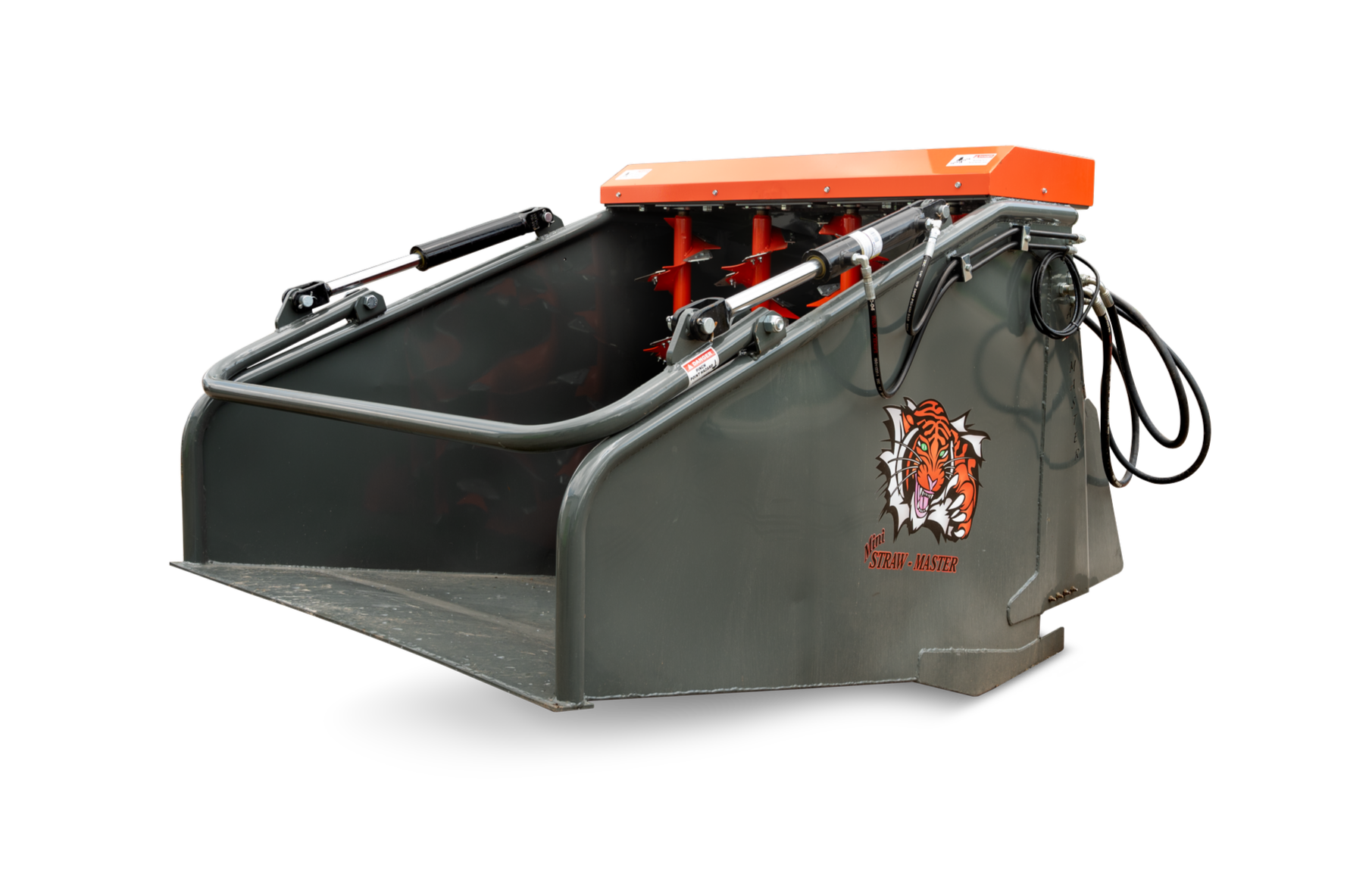

SMMI-4
Mini Skidsteer / Skidsteer
- from 18-50 HP
Overall Dimensions: 80”L x 62”W x 75”H
Bale Cavity Dimensions: 46”L x 47”W x 42”H
Bale size suitability: 48”L x 36”W x 36”H
Weight: 800 lbs
Mini Skidsteer / Skidsteer from 18-50 HP
Hydraulic Requirements:
8-12 GPM at 3000 PS
Case Drain
12V DC power (10 amp)
Features:
Standard side discharge
25-35ft blowing distance
300° Hood rotation
2 Stage power deflector
Reversible beaters
End gates
Optional cordless power tool battery adaptor
(DEWALT & Milwaukee)

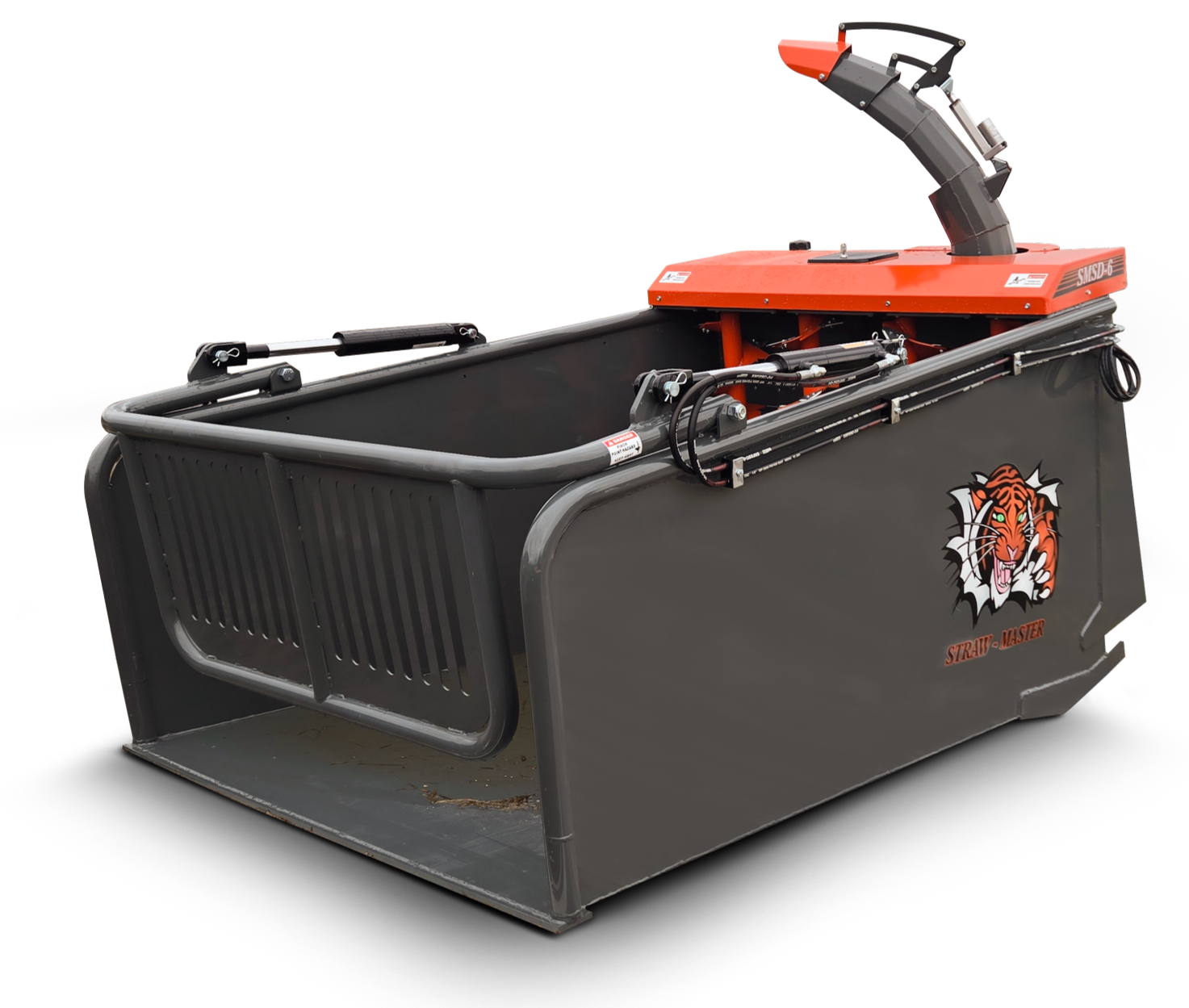

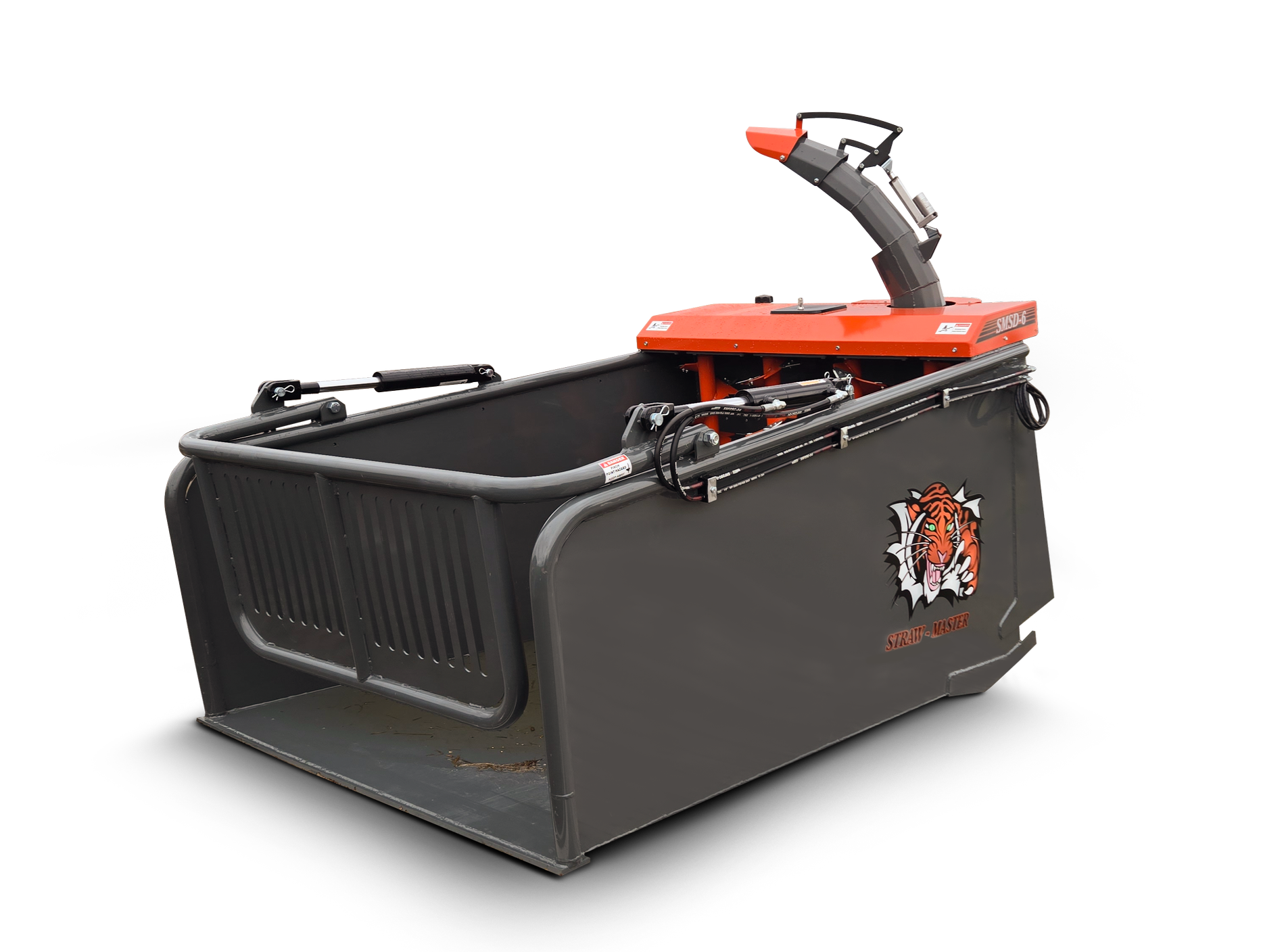

SMSD-6/ SMSD-6M
(low flow 15-20 GPM)
Skidsteer / Mini Wheel Loaders 45-65 HP
Overall Dimensions: 95”L x 57”W x 75”H
Bale Cavity Dimensions: 72”L x 53”W x 40”H
Bale size suitability: 36”L x 48”W x 72”H
Weight: 1,450 lbs
Skidsteer / Mini Wheel Loaders 45-65 HP
Hydraulic Requirements:
20-28 GPM at 3000 PSI
Case Drain
12V DC power (10 amp)
Features:
Standard side discharge
30-40ft blowing distance
300° Hood rotation
2 Stage power deflector
Reversible beaters
End gates
Optional cordless power tool battery adaptor
(DEWALT & Milwaukee)

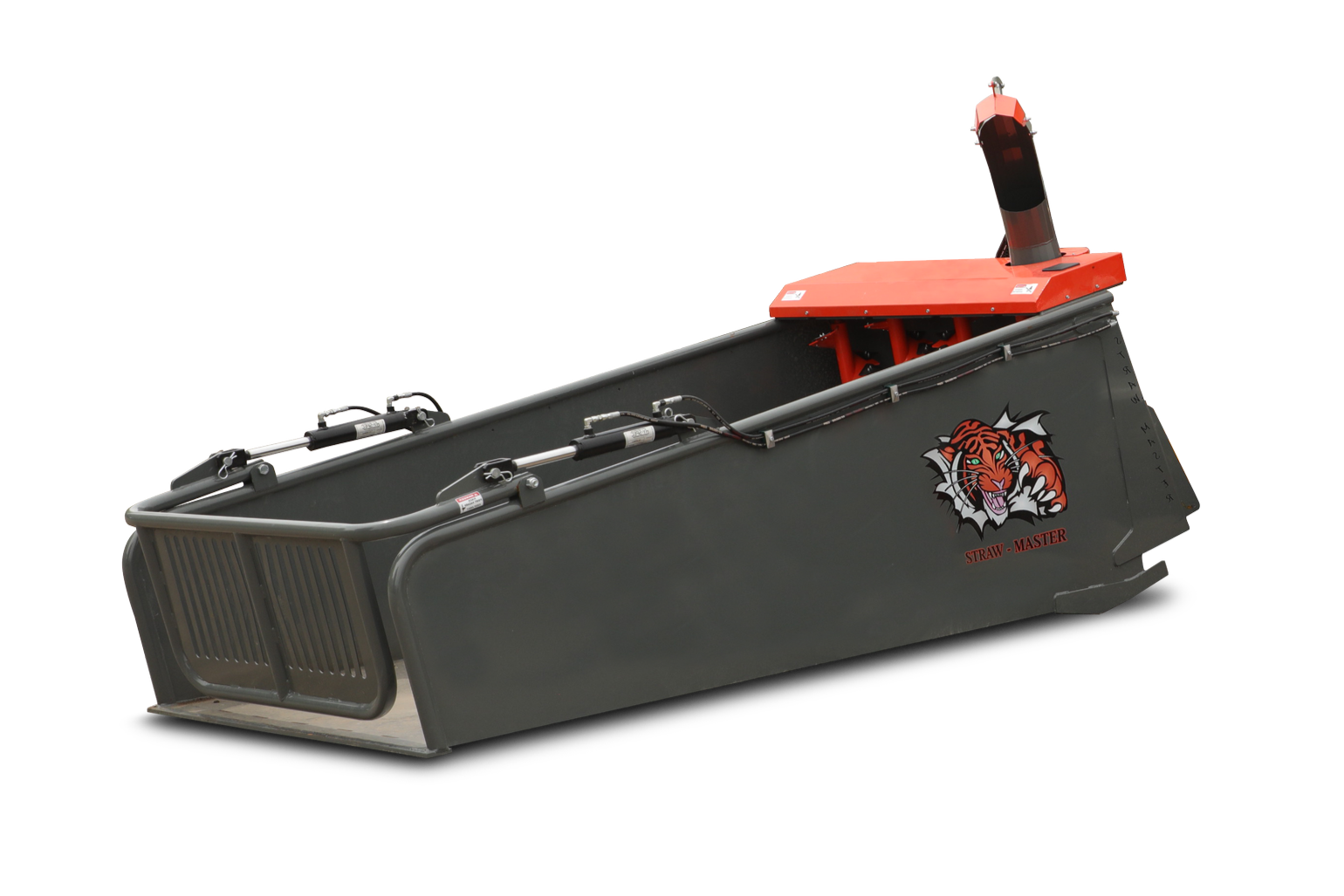

SMSD-8 / SMSD-8HD
Front End Loaders / Large Skidsteer 70 - 90 HP
Overall Dimensions: 128”L x 62”W x 75”H
Bale Cavity Dimensions: 102”L x 53”W x 42”H
Bale size suitability: 96”L x 48”W x 36”H
Weight: 1,800 lbs
Front End Loaders / Large Skidsteer 70 - 90 HP
Hydraulic Requirements:
22-30 GPM at 3000 PSI
Case Drain
12V DC power (10 amp)
Features:
Standard side discharge
40ft blowing distance
300° Hood rotation
2 Stage power deflector
Reversible beaters
End gates
Optional cordless power tool battery adaptor
(DEWALT & Milwaukee)

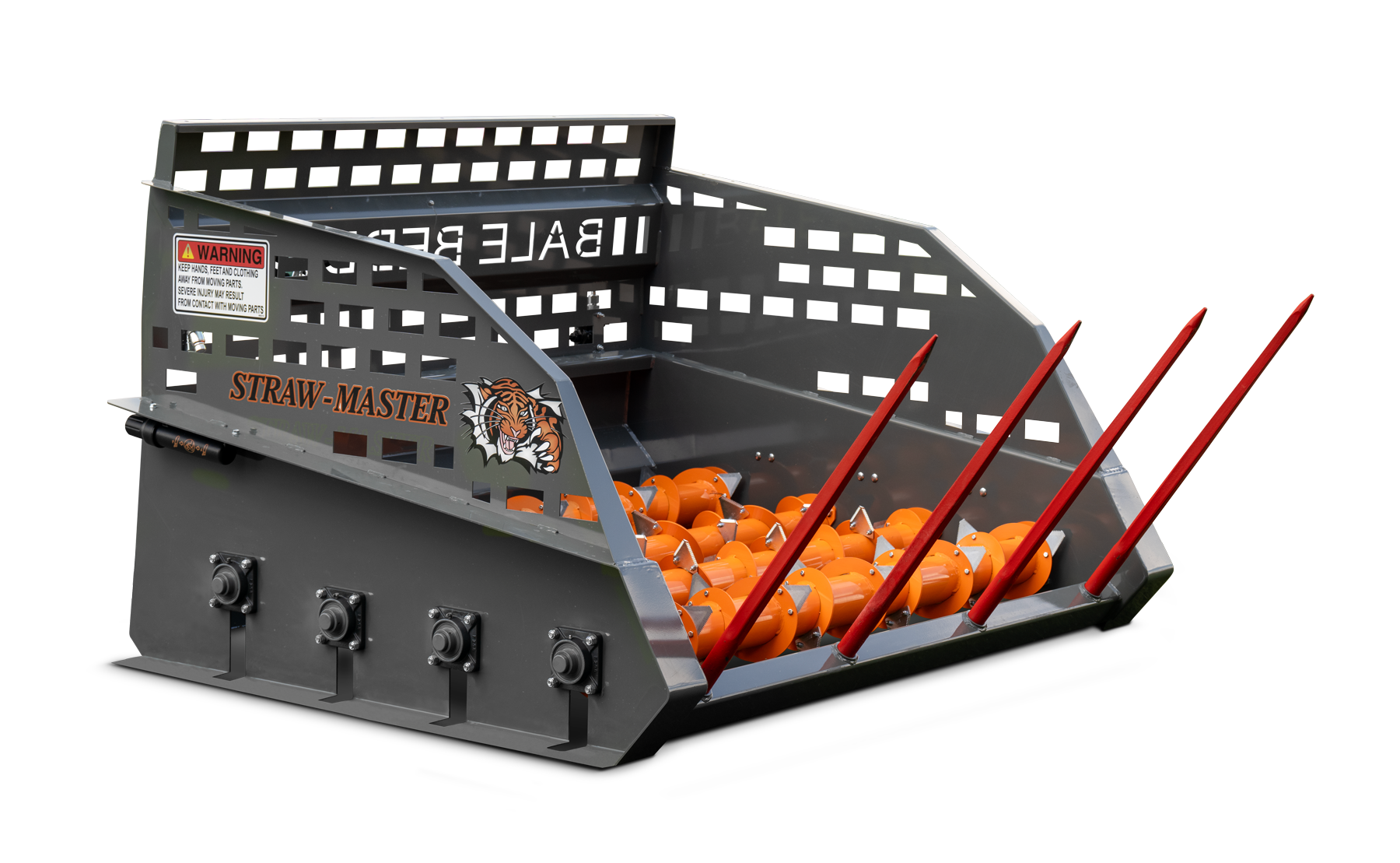

Bale Bedder
Heavy Duty Bale Bedder
Specifications:
Loading Width: 72 Inches
Drive System: Chain drive motor system
Augers: 4
Weight: 1,200 lbs (544 kgs)
Features:
Universal skid-steer attachment
Chain Drive
4 Auger: 72" Design
Can be used for corn stubble, soy stubble, straw, dry hay, or baleage
Compact design for tight spots

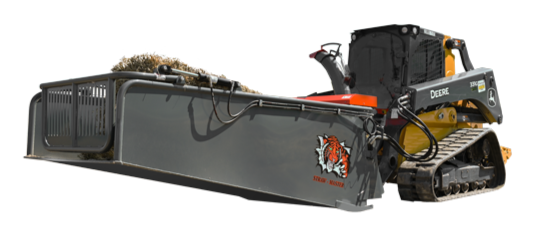

Commercial Bale Shredder/Spreader
SMSD 8XL - Commercial Model
Front End Loaders / Large Skidsteer
70 - 90 HP
Overall Dimensions: 128”L x 62”W x 75”H
Bale Cavity Dimensions: 102”L x 53”W x 42”H
Bale size suitability: 96”L x 48”W x 36”H
Weight: 1,800 lbs
Front End Loaders / Large Skidsteer 70 - 90 HP
Hydraulic Requirements:
36-42 GPM at 3000 PSI
Case Drain
12V DC power (10 amp)
Features:
Standard side discharge
50ft blowing distance
300° Hood rotation
2 Stage power deflector
Reversible beaters
End gates
Optional cordless power tool battery adaptor
(DEWALT & Milwaukee)
Efficiency Redefined
Saves Time
Scoop and Go Design for minimal load time
Tight or long arch flexibility for uniform spread
Variable speed fan for operator flexibility
Saves Bedding
Cut length of 5” or less for better absorbing capacity
2 Stage hood deflector for better control of bedding stream
14-40 GPM maximum auxiliary output
Saves Labor
Quick and easy loading
Power tail gate to retain bale after strings are cut
Wireless remote eliminates extra wiring harness
Features of All Straw Master Sizes
Straw Master Saves You Time
Slim design allows straw chopper operation in low head room areas
Scoop-N-Go design allows minimum load time
From tight arch to long arch gives flexibility for uniform spread
Variable speed beaters give operator flexibility of bedding materials and time management
Delivery anywhere in Canada & the U.S
Bale Shredding Saves on Bedding
2 stage hood deflector allow better control of bedding stream
Relative cut length of 5” or less for better absorbing capacity
Skid steer must be equipped with case drain
12v DC power supply required
Minimum aux. output of 18-20 GPM
Min. recommended skid steer size 50-60hp
Bale Processing Saves On Labor
Easy loading
Power tail gate to retain bale after strings are cut
Skid steer roll back to create gravity feed, for less moving parts
Wireless remote eliminates extra wiring harness
Reverse-able beaters reduces plug ups
Straw Master Bale Shredder Features
3 Model sizes: small, medium-large, and round bales (see chart below)
Ideal for: Straw, wheat, hay, bean stover & corn stover
Durable powder coat finish
End gate to lock in bale
Magnetic remote case available
